This
is an example of a class hierarchy that uses polymorphism. The generic type is
the base class
Shape,
and the specific derived types are
Circle,
Square,
and
Triangle:

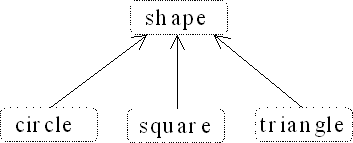

This
is a typical class-hierarchy diagram, with the base class at the top and the
derived classes growing downward. The normal goal in object-oriented programming
is for the bulk of your code to manipulate pointers to the base type (
Shape,
in this case) so if you decide to extend the program by adding a new class (
rhomboid,
derived from
Shape,
for example), the bulk of the code is not affected. In this example, the
virtual function in the
Shape
interface is
draw( ),
so the intent is for the client programmer to call
draw( )
through a generic
Shape
pointer.
draw( )
is redefined in all the derived classes, and because it is a virtual function,
the proper behavior will occur even though it is called through a generic
Shape
pointer.
Thus,
you generally create a specific object (
Circle,
Square,
or
Triangle),
take its address and cast it to a
Shape*
(forgetting the specific type of the object), and use that anonymous pointer in
the rest of the program. Historically, diagrams are drawn as seen above, so the
act of casting from a more derived type to a base type is called
upcasting.
