8.3. Constructing a Quadtree

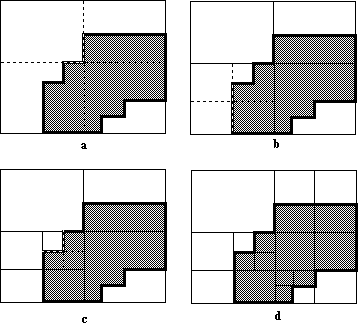

   Fig. 8.3 : (a)first division (b)second division (c)third division (e)entire image divided

• 1) white --> the entire quadrant is white. Represented by a white square.
• 2) black --> the entire quadrant is black. Represented by a black square.
• 3) grey --> the quadrant is a mixture of black and white. Represented by a white circle.

Enclosing figure 8.1a the image in a block produces the first level of our quad tree. This can be seen in figure 8.4 where the entire square is represented by Level 3. The square is then sub-divided into four equal sized quadrants (hence the name quadtrees). This is shown in figure 8.3a. In this particular case the NW quadrant is a white square while all the rest of the quadrants are grey circles as shown by level 2 in figure 8.4. The grey are again subdivided into quadrants (in this example I have chosen to only use the SW quadrant for simplicity sake). In figure 8.3b we see that the SW quadrant now consists of 2 white, 1 black and a grey quadrant. This is represented by the second group on level 1 of figure 8.4. The grey quadrant is again subdivided. This is our final division because their are no more greys left. We now have 1 white and 3 black quadrants. This is, of course, done for the whole image. The final quadtree can be seen in figure 8.4.

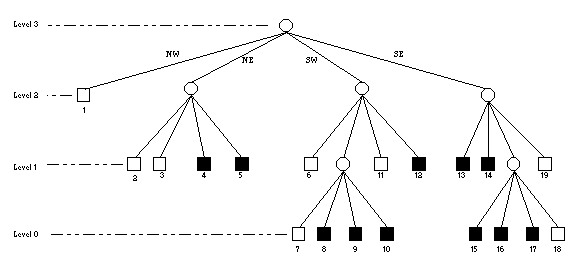

             Fig. 8.4 : Final quadtree showing levels
